YouGou Electronics

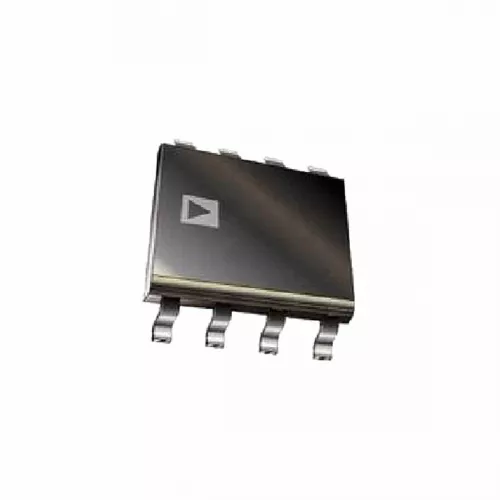

Amplifier IC ADTL082ARZ

ADTL082ARZ Amplifier IC

ADTL082ARZ Amplifier IC

5 of 5

Summery

Amplifier IC ADTL082ARZ

BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

ADTL082ARZ Amplifier IC Attributes

  • Unit Weight 0.019048 oz
  • Height 1.5 mm
  • Length 5 mm
  • Maximum Operating Temperature + 125 C
  • GBP - Gain Bandwidth Product 5 MHz
  • SR - Slew Rate 20 V/us
  • en - Input Voltage Noise Density 16 nV/sqrt Hz
  • Minimum Operating Temperature - 40 C
  • Input Voltage Range - Max 15 V
  • Maximum Dual Supply Voltage +/- 18 V
  • Minimum Dual Supply Voltage +/- 4 V
  • Number of Channels 2 Channel
  • CMRR - Common Mode Rejection Ratio 86 dB
  • Output Current per Channel 27 mA
  • Ib - Input Bias Current 5 nA
  • Vos - Input Offset Voltage 1.5 mV
  • Supply Voltage - Max 36 , +/- 18 V
  • Supply Voltage - Min 8 , +/- 4 V
  • Operating Supply Current 1.2 mA
  • Package / Case SOIC-8
  • Dual Supply Voltage +/- 15 V
  • Operating Supply Voltage 15 V
  • PSRR - Power Supply Rejection Ratio 86 dB
  • Factory Pack Quantity 98
  • Voltage Gain dB 4 mm
